Title

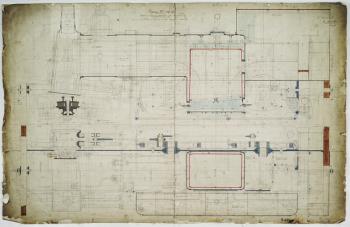

General arrangement drawing no 24308
Reference
YA1966.24/3/21/C/11/3419
Production date
1876 - 1876

Creator

Smith, W.H.Biography Biography
Active 1873-1880, draughtsman for Beyer, Peacock & Co. Ltd

Scope and Content
General arrangement drawing for order 3419, which comprised of six '4-4-0' tank locomotives for the Metropolitan District Railway Progressive numbers 1612-1617
Level of description
ITEM
Repository name
Science and Industry Museum

Associated people and organisations

Metropolitan District Railway Company Biography Biography
Incorporated on 29 July 1864, with sections opening up until 1910. Along with the Metropolitan Railway, it was taken over by the London Passenger Transport Board in 1933, becoming the Metropolitan and District Lines of the London Underground.

Subject
Railway transport
Railroad locomotive industry
large format document
Conditions governing access
Open access.
Conditions governing Reproduction
Copies may be supplied in accordance with current copyright legislation and Science Museum Group terms and conditions.

Hierarchy browser

contains 22 partsSUB-SUB-SUB-SERIESYA1966.24/3/21/C/11 Engineering drawings for orders recorded in Order Book No 13, numbers 3341-3500
- ITEMYA1966.24/3/21/C/11/3419 General arrangement drawing no 24308
